PRODUCTS

2 DVI inputs, 1 HDMI2.0 input, 10 network outputs

Support maximum input resolution of

4096*2160@60Hz or

8000*1000@60Hz

Support EDID management

Support network port backup

Support HDMI2.0 loop output

Support non-rectangular load

Support passive correction

Support 3D function

Support spherical changes

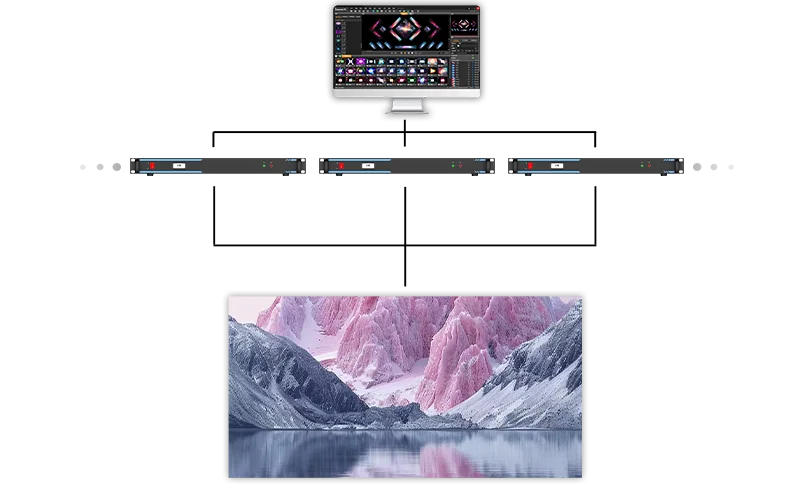

Support cascade control

Support brightness and Color temperature control

Input interface: DVI*2, HDMI2.0*1, audio

Output interface: HDMI2.0*1, LAN*10, 3D - SYNC * 1

Control port:

USB\CFG

100M ETH*1

CFG -1G *2

Cascade port*2,

USB - IN * 1

USB - OUT *1

Other: Light Sensor, UART IN\OUT

Load points: 6.5 M

Maximum width: 8000

Maximum height: 8000
