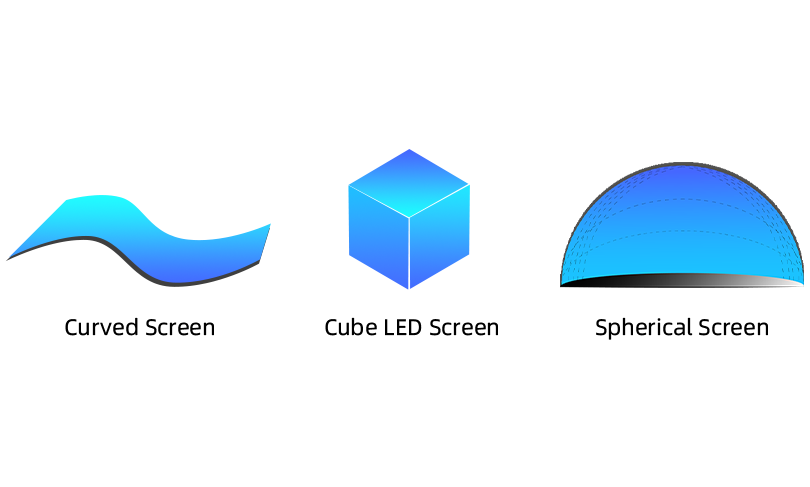

The Hxs Series helps solve color differences and splicing issues that may appear in special-shaped LED screens.

For irregular LED modules, curved screens, or customized display structures, correction support helps improve cabinet consistency and image continuity.

Key Benefits

• Irregular screen areas can look more visually consistent

• Splicing gaps and color differences can be reduced after correction

• Curved or customized LED displays can achieve smoother image continuity

• On-site correction work becomes easier for non-standard screen structures

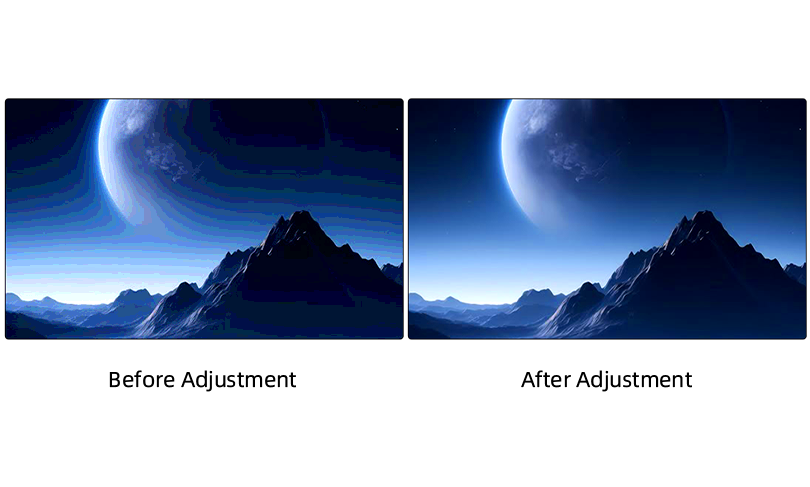

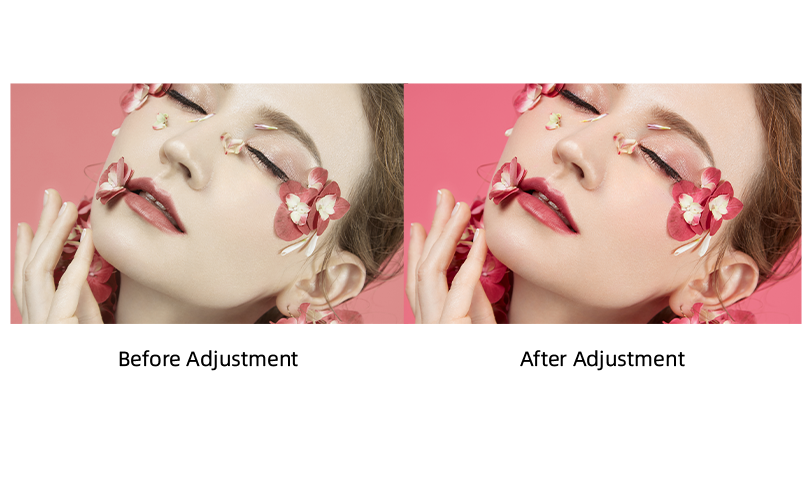

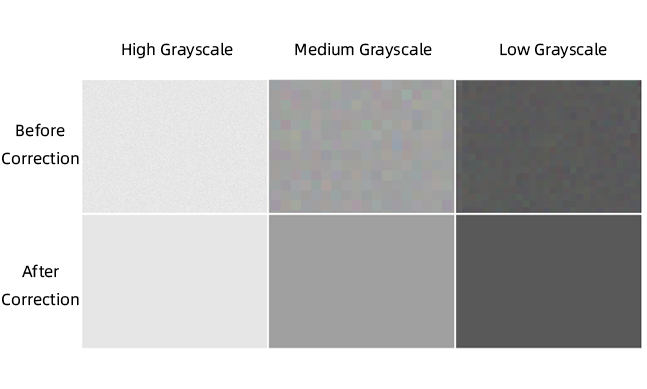

The Hxs Series supports independent RGB gamma adjustment to help control low-gray uniformity and white balance drift.

This function helps make the image closer to the original source and supports more accurate display performance under different brightness and grayscale conditions.

Key Benefits

• Red, green, and blue channels can be adjusted more precisely

• White balance drift can be reduced in low-gray scenes

• Color performance can stay more stable under different brightness settings

• Engineers have more control when fine-tuning image consistency

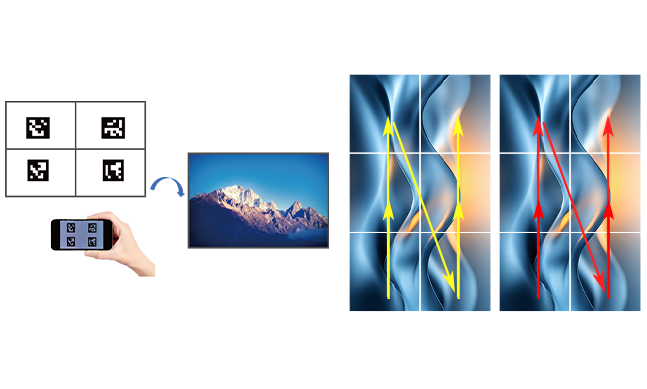

The Hxs Series supports photo-assisted screen connection. Operators can take a photo with a mobile phone, and the software can automatically complete the display connection setup.

This helps reduce manual configuration work and makes receiving card setup more efficient during LED cabinet installation and maintenance.

Key Benefits

• Screen connection setup can be completed faster

• Manual mapping errors can be reduced during installation

• On-site engineers can save time when configuring cabinet layouts

• Maintenance and reconfiguration work becomes more convenient

10

Arbitrary Cabling

The Hxs Series supports arbitrary cabling without rectangular load restrictions. Blank areas do not occupy load resources, improving network port utilization.

This gives engineers more flexibility when wiring LED cabinets, especially when the LED display layout is irregular or the cabinet structure is not a standard rectangle.

Key Benefits

• Cabinet wiring can be arranged with fewer layout restrictions

• Load resources can be used more efficiently

• Irregular LED display layouts become easier to connect

• On-site cable planning can be more flexible during installation



11

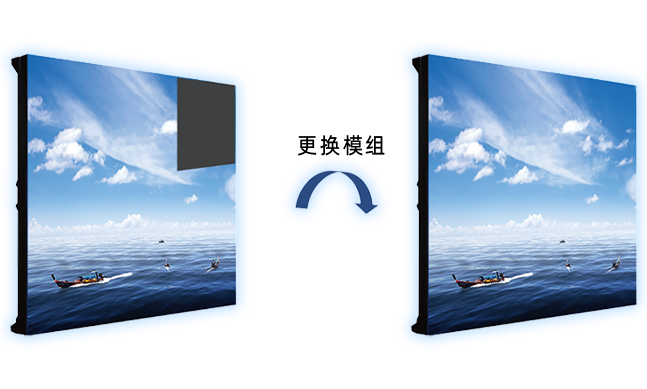

Automatic Correction

After an LED module is replaced during maintenance, the Hxs Series can automatically restore the corresponding calibration data, helping the new module match the brightness and color performance of the surrounding screen area.

This helps reduce manual correction work and supports faster restoration of display consistency after module replacement.

Key Benefits

• Replaced modules can recover display consistency more quickly

• Maintenance teams can reduce manual calibration work

• Screen repair becomes faster and less dependent on repeated adjustment

• The display can return to normal operation with less downtime



12

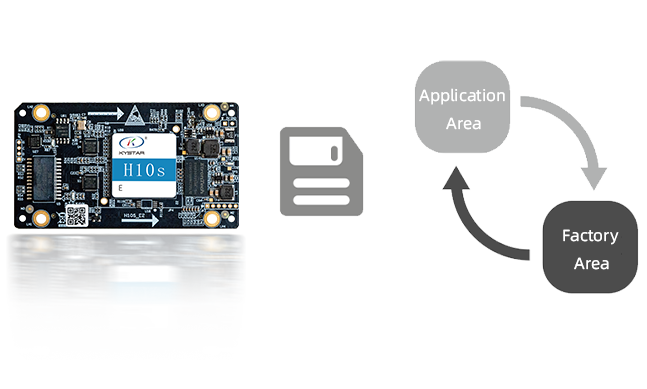

Correction Data Backup

The Hxs Series supports correction coefficient storage in both the factory area and the application area of the receiving card.

If application parameters become disordered, the data can be restored with one click, helping engineers recover display performance more quickly.

Key Benefits

• Important calibration data is better protected

• Parameter errors can be recovered more easily

• Engineers can restore display settings without rebuilding the configuration from zero

• Long-term maintenance becomes safer and more controllable

13

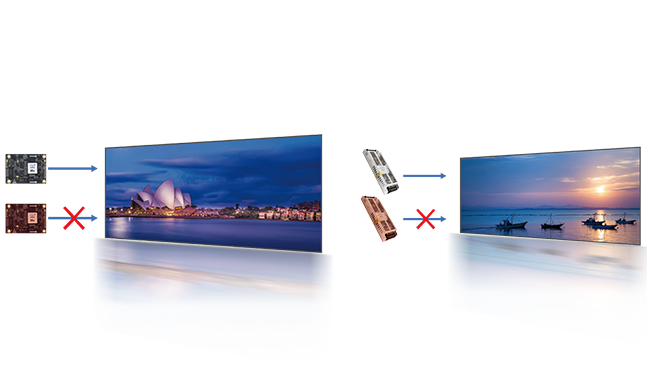

Dual Card & Dual Power Backup

The Hxs Series supports real-time master-slave status monitoring. When the master device fails, the backup device can take over instantly to help maintain normal display operation.

This backup design improves system reliability for LED display projects that require stable long-term operation.

Key Benefits

• Display interruption risk can be reduced

• Backup devices can take over when the main device fails

• Power and receiving card status can be monitored more reliably

• The LED display system becomes more suitable for long-running applications

14

Intelligent Module

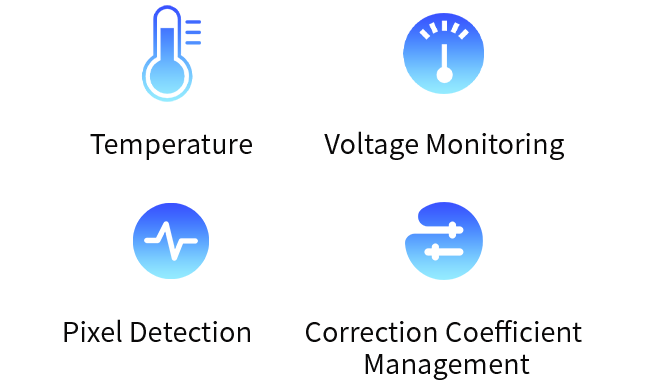

The Hxs Series supports intelligent module functions without external equipment. It can detect and manage cabinet data such as temperature, voltage, and dead pixels.

This helps operators and maintenance teams monitor LED cabinet status more efficiently and identify potential issues during operation.

Key Benefits

• Cabinet status can be monitored more clearly

• Temperature, voltage, and dead pixel issues can be identified earlier

• Maintenance teams can locate problems more efficiently

• LED display operation becomes easier to manage over time
