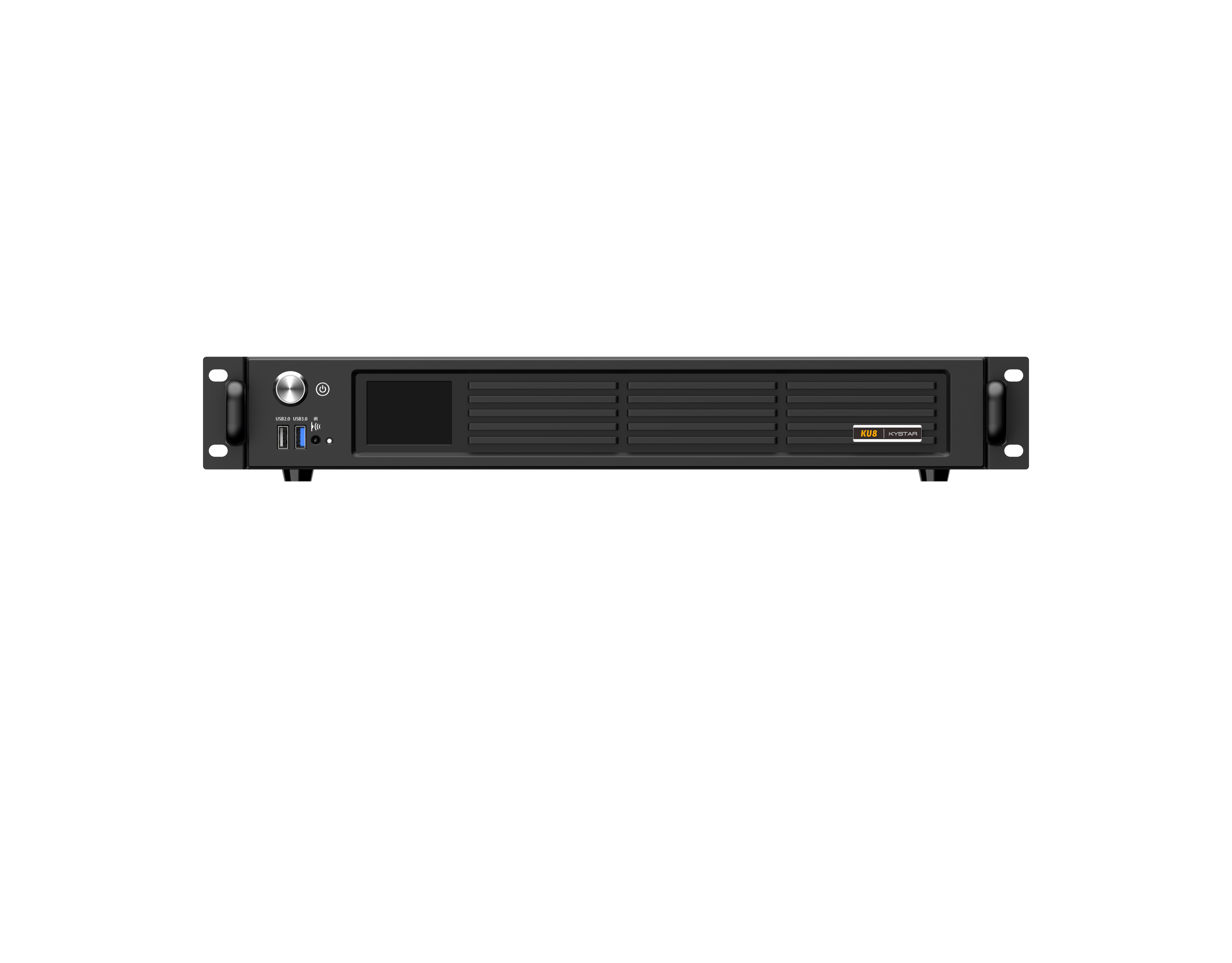

PRODUCTS

Router connection, direct network connection, WiFi connection, 4G and other communication methods

Built-in 32GB (25G available), USB plug-and-play 3.5mm audio output, audio and video synchronous output

Support multiple windows and multiple materials to play on the screen at the same time

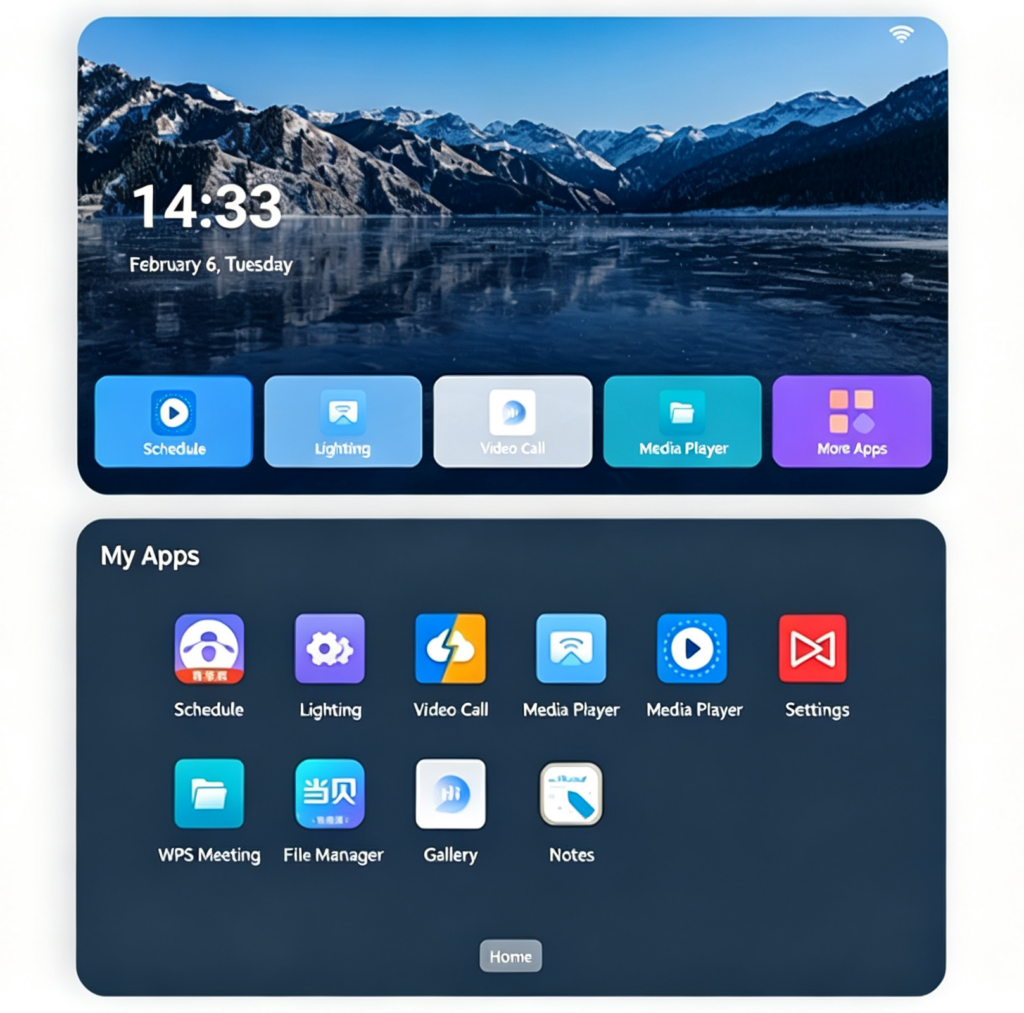

Support computer WEB PE and mobile phone App control

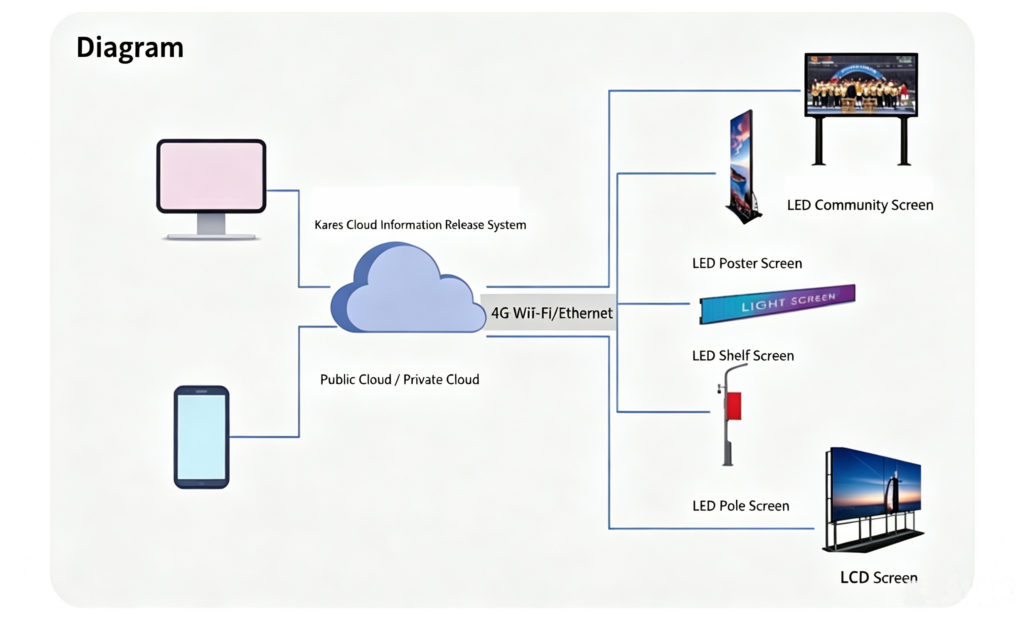

Support Kares cloud platform management

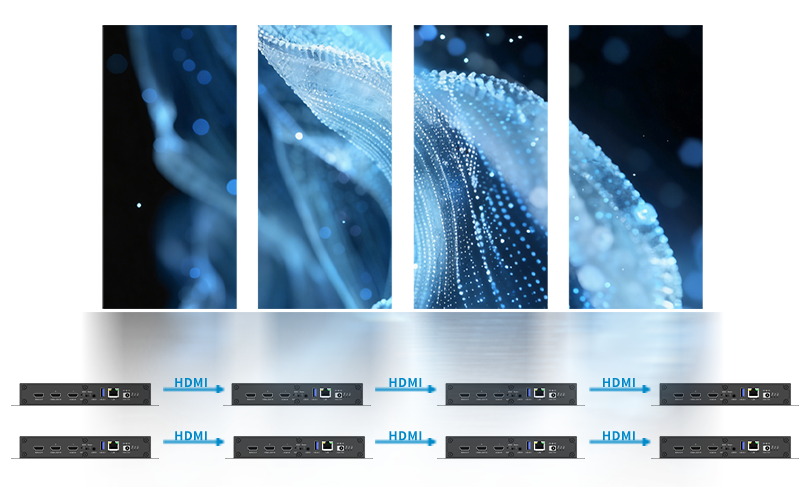

Support synchronous signal HDMI input

Support HDMI output

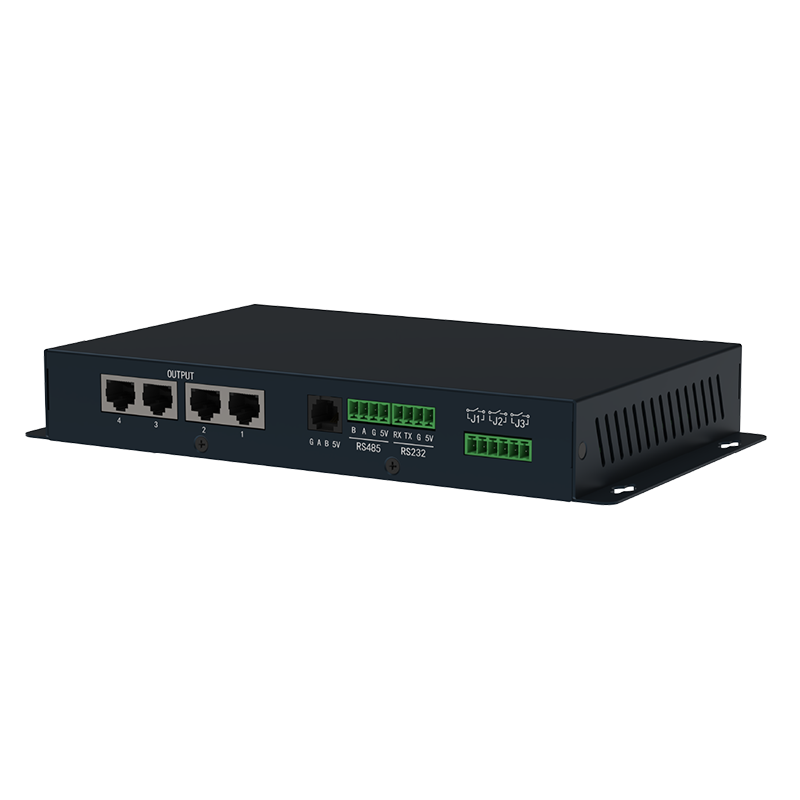

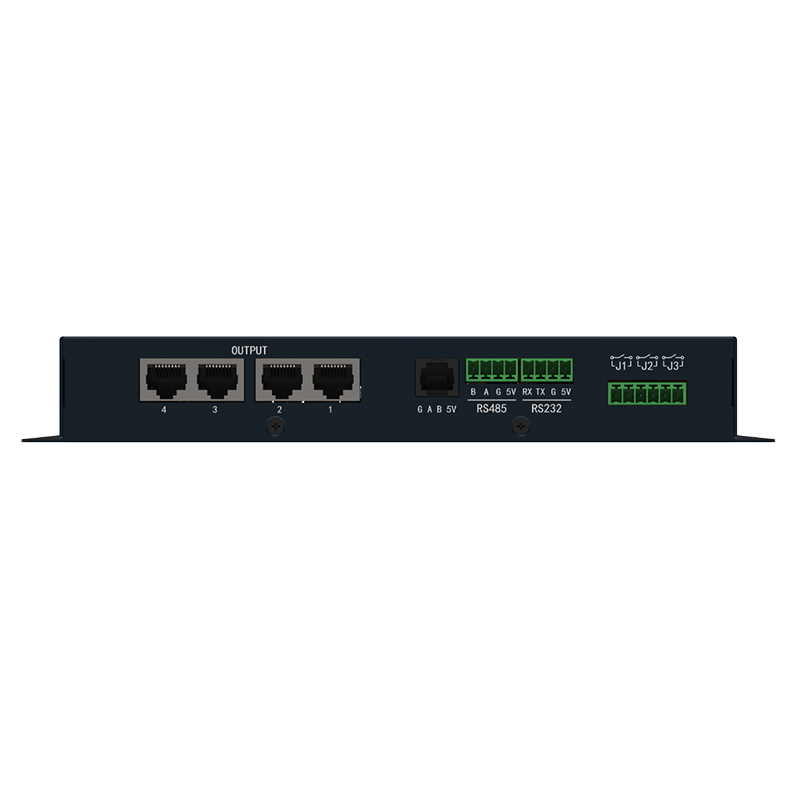

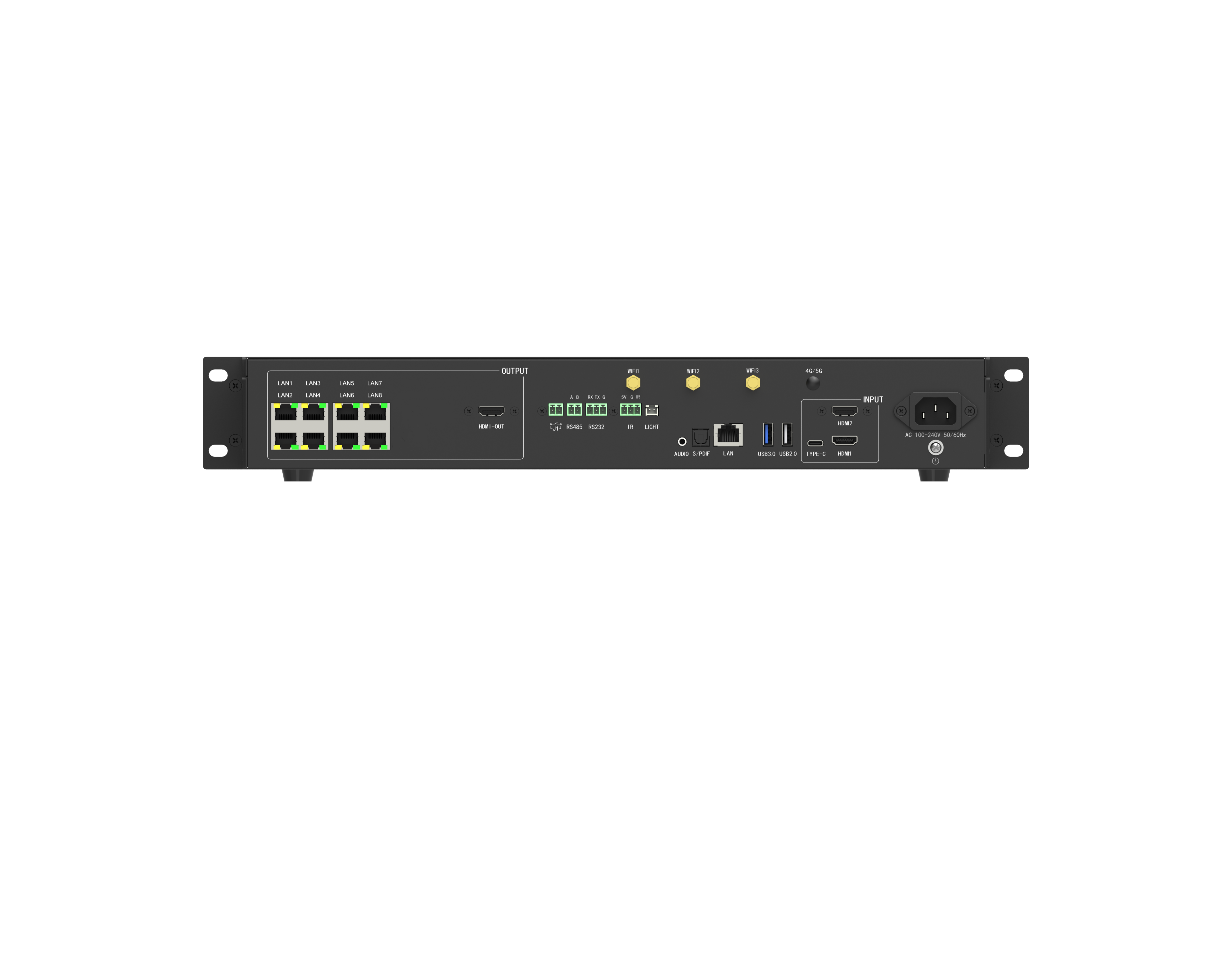

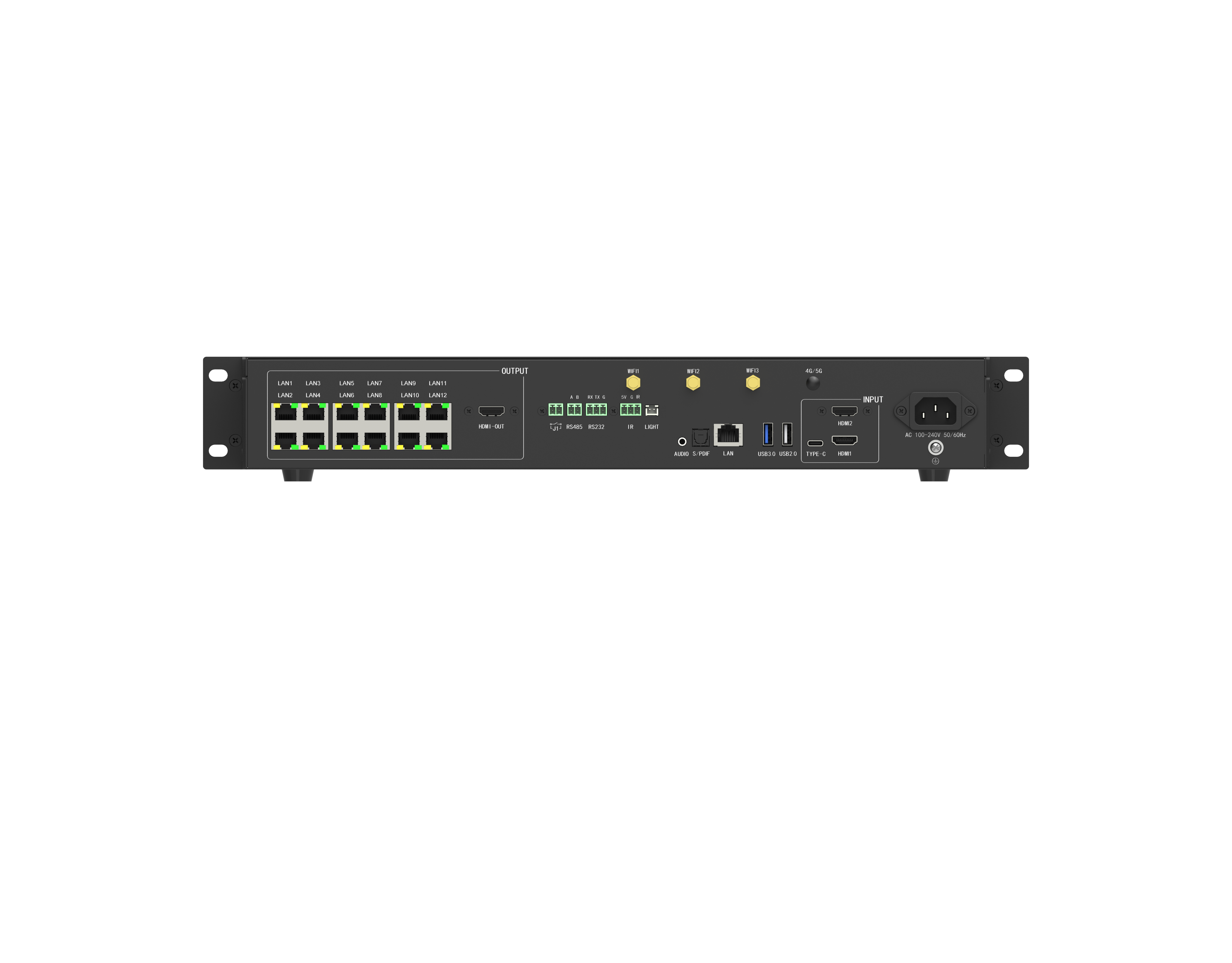

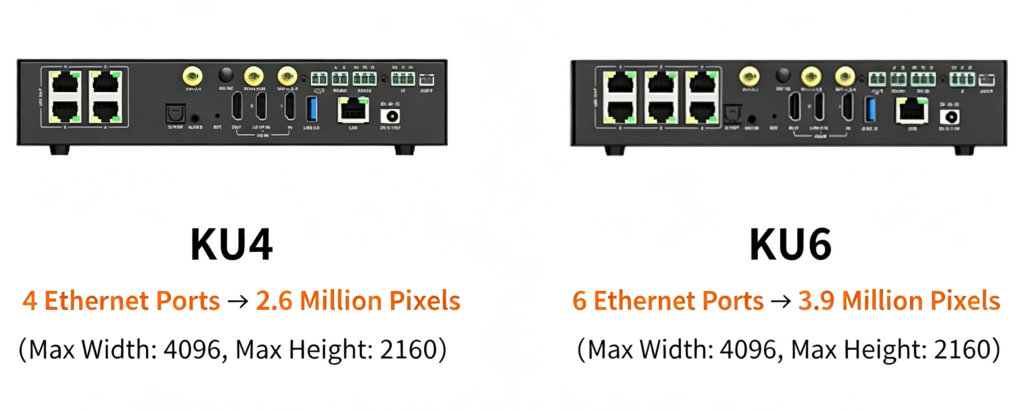

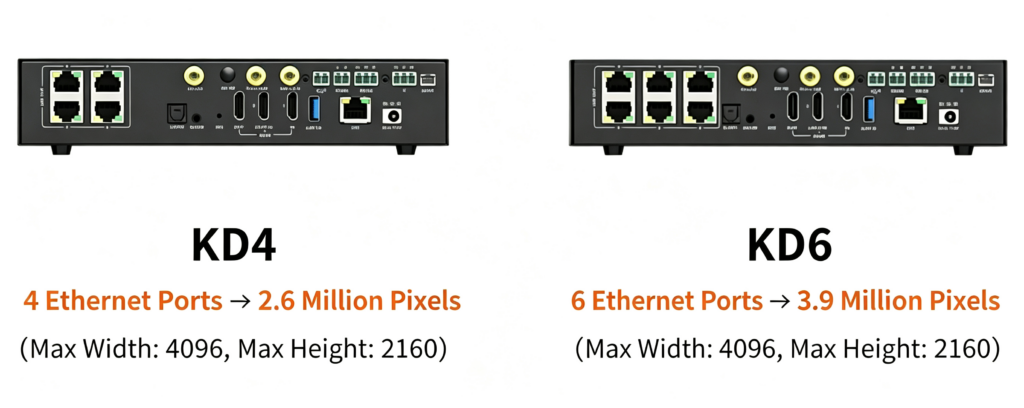

Gigabit output network port*4

HDMI input*1: HDMI signal input (1080P)

HDMI output*1: HDMI signal output (1080P)

Audio output port*1:

1/8″ (3.5mm) TRS plug output

USB*2: USB3.0+USB2.0, connect to USB flash drive, plug and play

100M input network port*1: connect to LAN, cluster control

WiFi: AP+STA dual WiFi mode, 2.4+5.8Ghz, 485*11+232*1

Reserved light sensor and temperature sensor interface, 4G/GPS*1 (optional), optional 3-way relay control

Load: 240W

Max width: 3840

Max height: 2000
