01

Quadruple Monitoring Delivers Rock-Solid Stability for Unattended Scenarios

·   Wireless Connection Monitoring

·   Software / Hardware Watchdog ·   Harsh environments and severe electromagnetic interference may trigger program runaway or system crash withouton-site intervention.

If the software watchdog fails to resolve faults, the hardware watchdog will activate. Combinedsoftware and hardware

monitoring can resolve 98% of abnormalities and automatically restore normal system operation. ·   Power Cycle Monitoring – A Unique Proprietary Design.

02

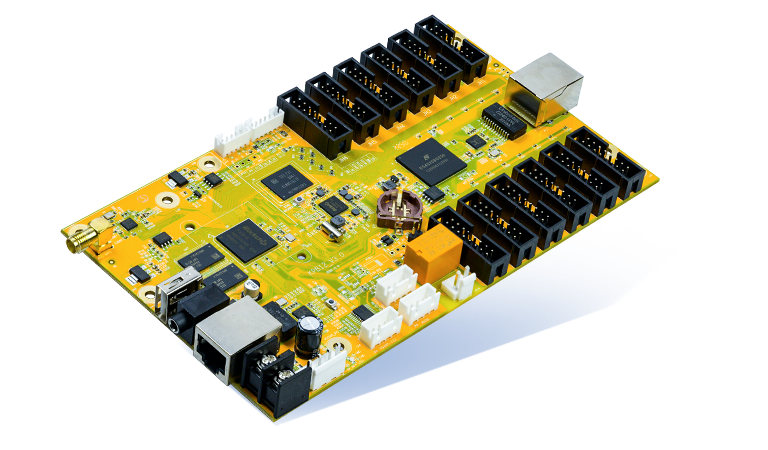

Integrated with 12 HUB-75E Ports

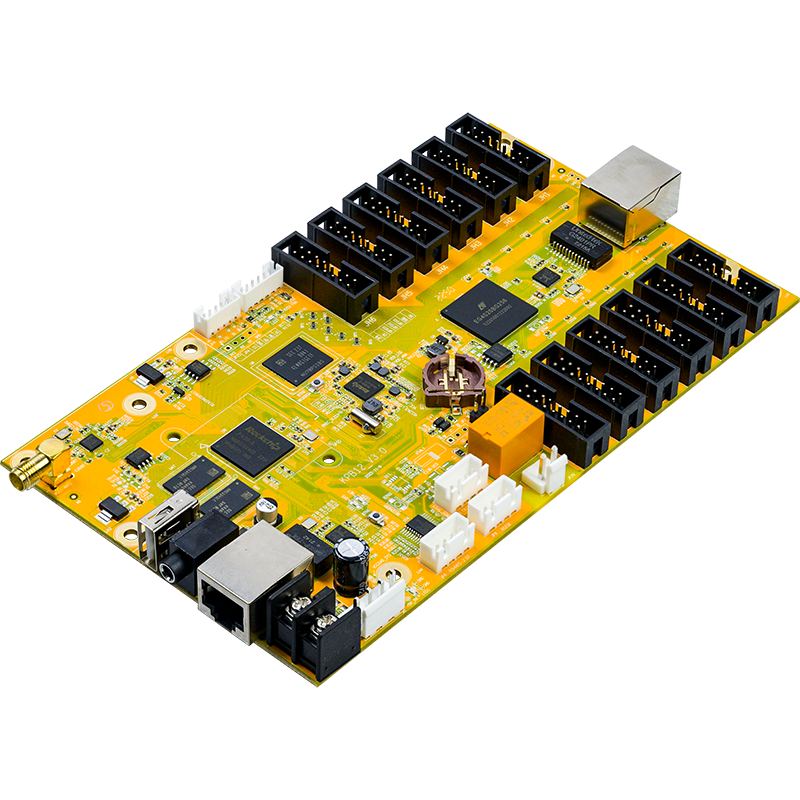

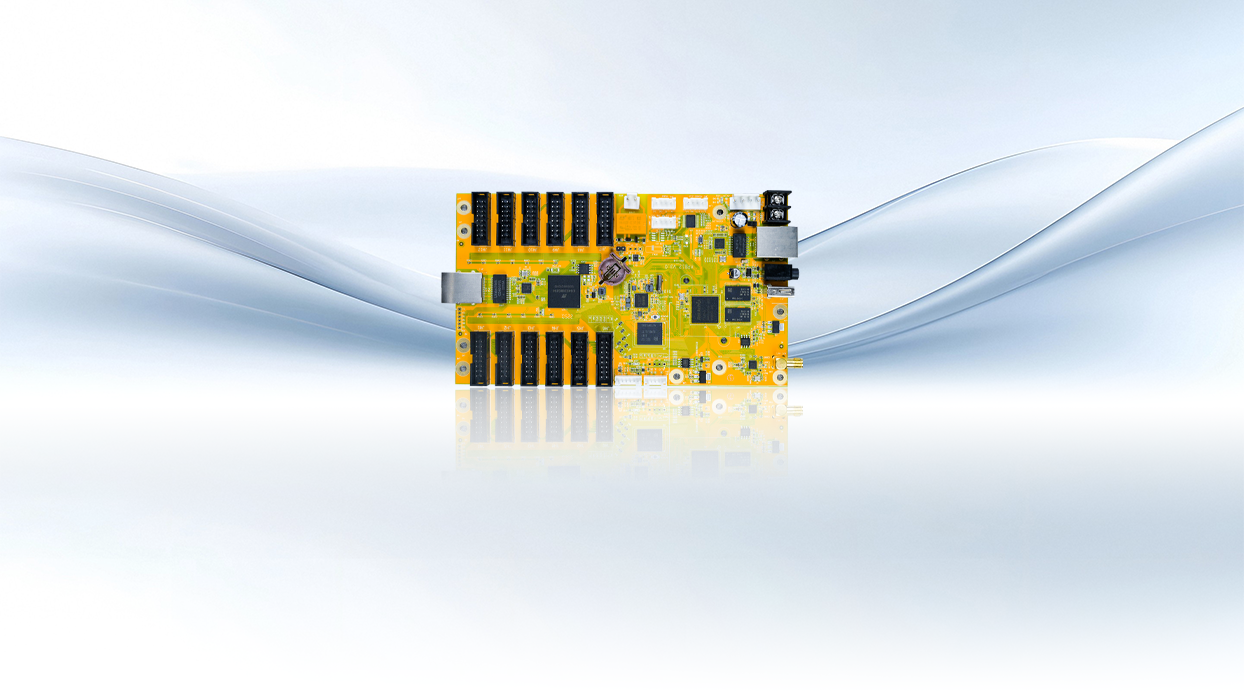

KPB12 is an al-in-one device integrating media player and full-color LED receiving card. It comes with 12 built-in HUB-75E interfaces,

capable of directly driving LED displays up to 200,000 pixels, with maximum width of 16384 and maximum height of 8192.

03

Compatible with Receiving Cards

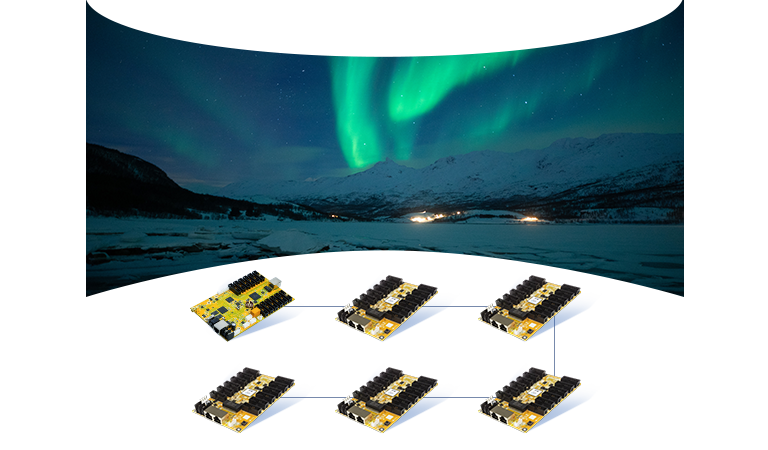

KPB12 can drive Kystar series receiving cards, supporting LED display loads up to 600,000 pixels in total.

04

High-Performance Multi-Window Playback

Equipped with a powerful processing chip, KPB12 has 8GB on-board storage (USB expansion supported). It smoothly plays videos, images and audio files in

various formats.Boasting robust multi-window playback capability, it supports simultaneous playback of up to 5 high-definition video streams.

05

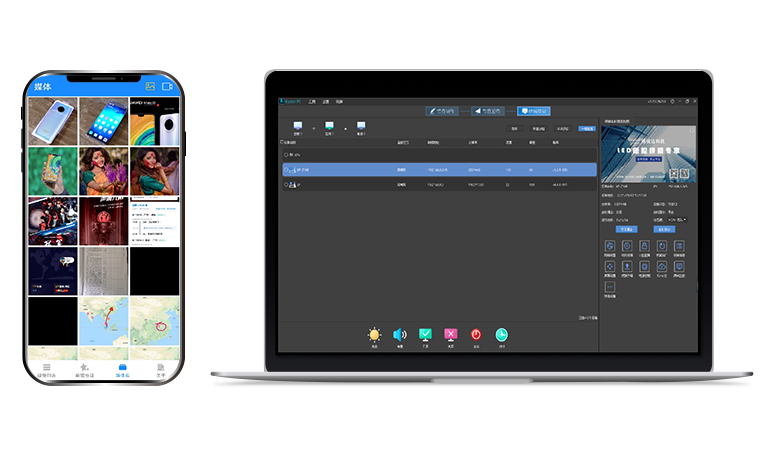

Professional Program Editing & Playback

Programs can be edited via PC-based Kystar PE media editing software. Featuring professional video optimization and flexible program

scheduling, Kystar PE meets complex playback requirements.Instant program editing is also available through the mobile

APP “Pandora Box” via wireless connection for convenient and fast operation.

06

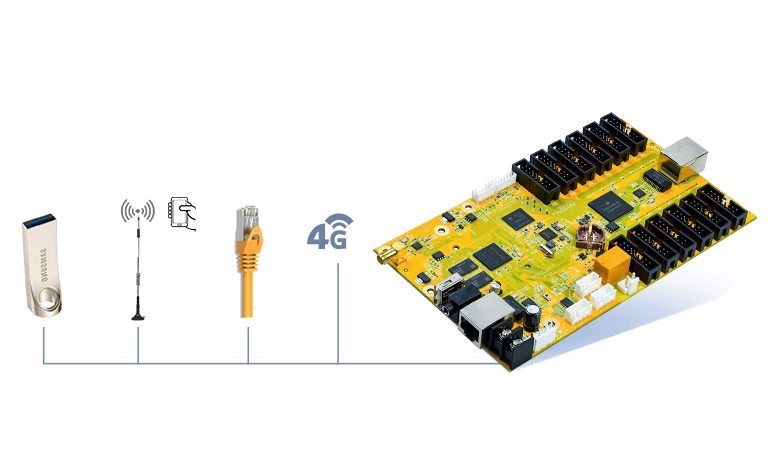

Multiple Communication Modes

Multiple control communication options are available for KPB12: program update via USB flash drive, wired communication via Ethernet cable,

short-range wireless communication via Wi-Fi, and remote wireless communication via 4G (optional).

07

Integrated Multi-Function Control Interfaces

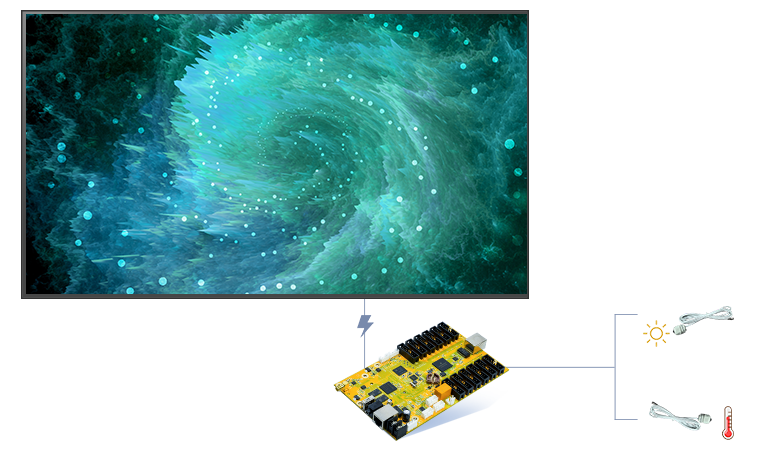

KPB12 integrates multiple expansion ports to connect brightness and temperature sensors, enabling automatic screen adjustment based on ambient

conditions.It is equipped with 1 relay control module as standard (expandable to 3 channels) to realize power management functions.

08

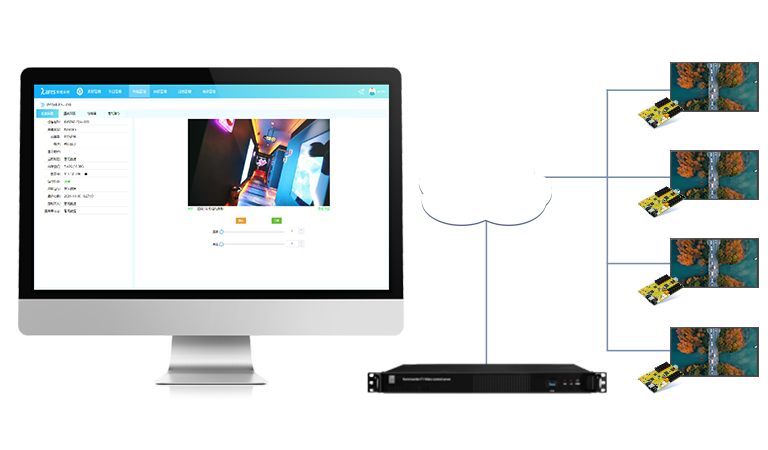

Kares Cloud Playback & Control System

KPB12 can connect to the cloud-based cluster playback control system. KPB12 units deployed across different locations can access

the Kares control platform via LAN or Internet to achieve centralized cluster display management.
