8K video processing, video image resolution can reach full 4:4:4 in RGB color space

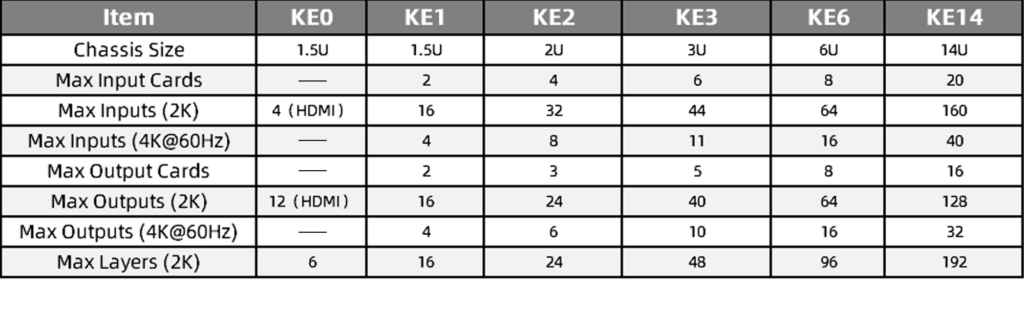

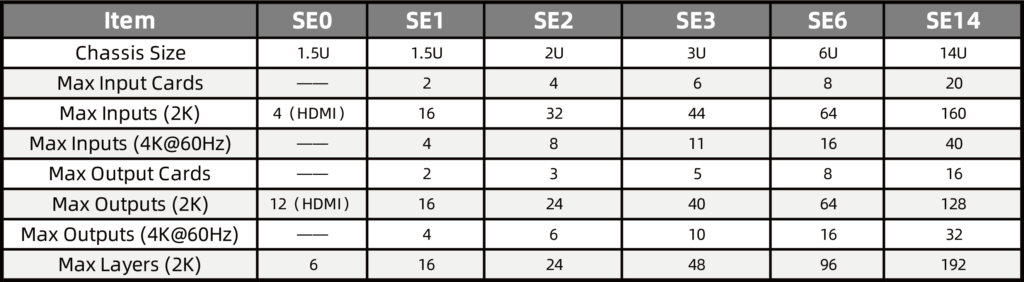

A single machine supports up to 192 layers, and a single output port supports up to 24 layers

Supports EDID management of video input and output interfaces

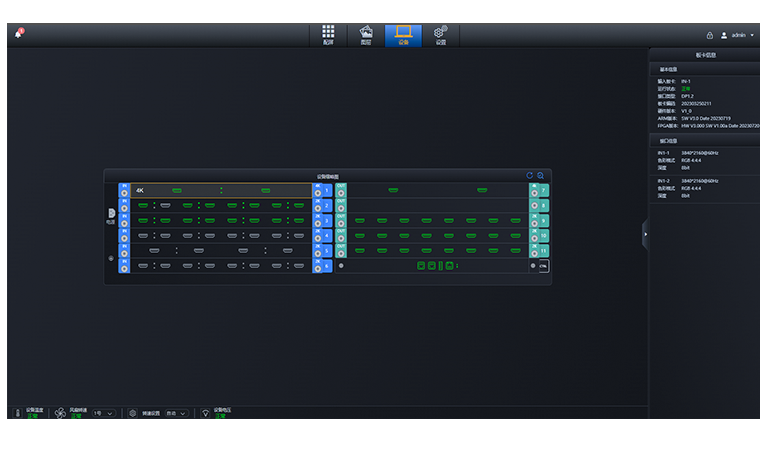

Supports real-time hardware monitoring of all modules, and early warning of faults

Supports more than 2,000 scene plans and plan patrols

Built-in network echo function, no need to add a preview board, and can achieve real-time input preview

Support device configuration and user data backup

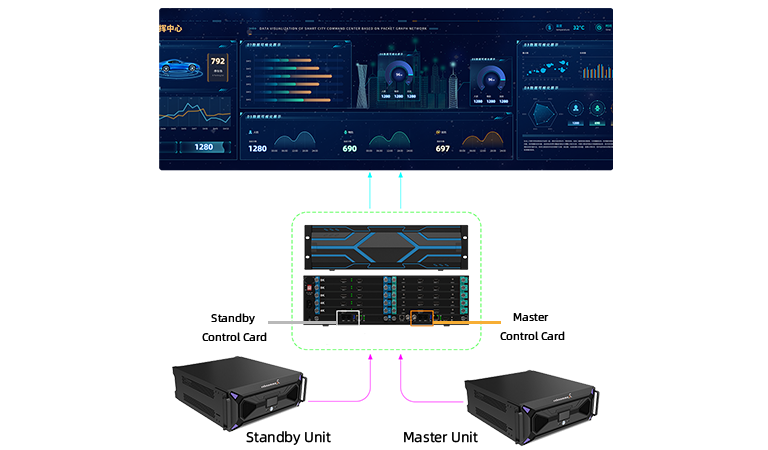

Support control card backup

Support input and output backup, support redundant power supply

Support multi-user and multi-role simultaneous operation, real-time synchronization.

Support OSD graphic overlay, support input character overlay function

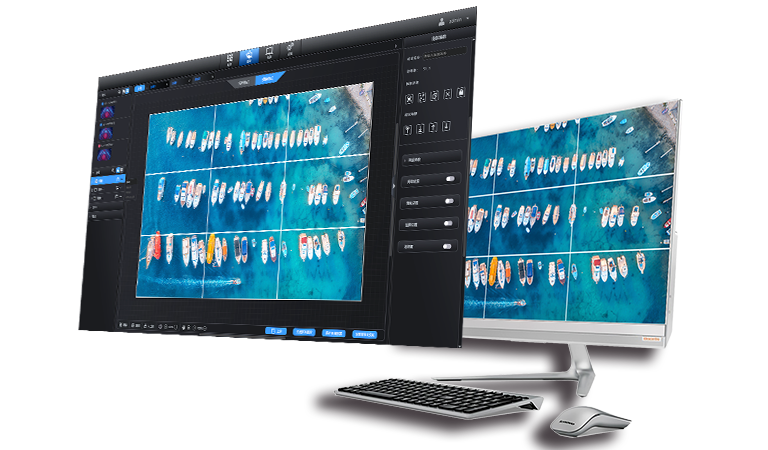

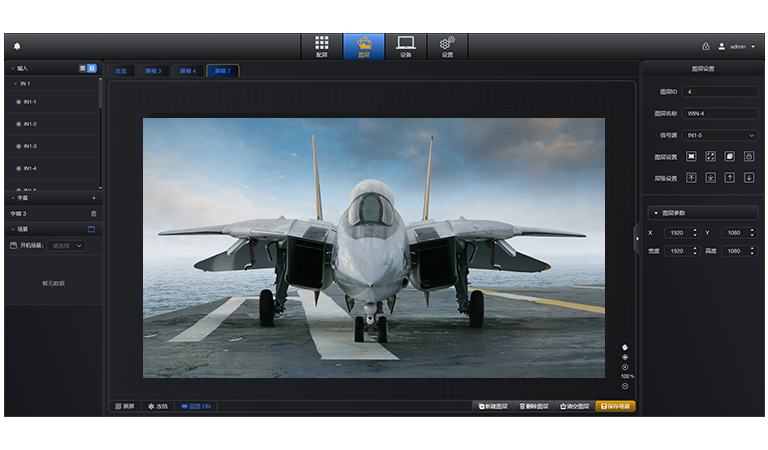

Support optional B/S architecture management, and use a browser to directly access the device through the LAN or the Internet for management

Support mobile phone/tablet APP control

Support GENLOCK external synchronization signal source

Supports various 3D format signal input and output such as left and right, top and bottom, 120Hz, etc.

Input port: Supports up to 160 HD inputs

Optional interfaces:

DVI, HDMI1.3, HDMI1.4, 3G-SDI,

IP Decode, VGA

HDBaseT_2K, HDBaseT_4K

12G-SDI,HDMI2.0, CVBS

DP1.2, DP1.4

Output port:

Supports up to 128 outputs;

Optional interfaces: 3G-SDI,HDBaseT, DVI, HDMI1.3, HDMI2.0, DP1.2

Control port:

RJ11 (RS-232)*2, RJ-45*1

3D-SYNC,USB3.0,Monitor, GENLOCK

DVI/HDMI1.3: 2048*1152@60Hz

Custom output : widest 4096, highest 4096

DP1.2 : widest 8192, highest 8192

HDMI2.0 : widest 7680, highest 7680
