T1 Portable

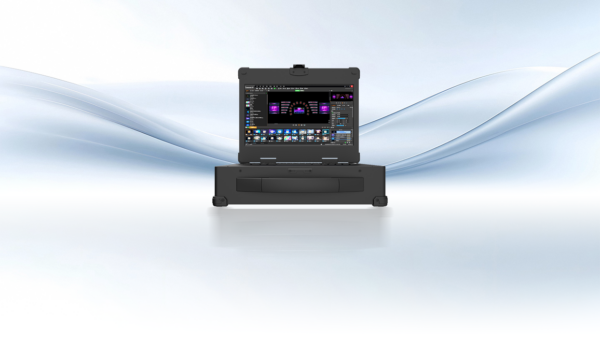

The KYSTAR T1 Portable is a portable playback media server for rental LED display projects, live events, cultural tourism shows, and broadcast control applications. T1 Portable combines real-time playback, 8K hardware decoding, multi-screen output, and T1+ control software in a compact flight-case design.
Designed for event rental companies, LED display integrators, stage production teams, exhibition projects, and command or broadcast control rooms, KYSTAR T1 Portable helps operators manage video playback, web content, network streaming media, multi-layer displays, and event control from one portable system.
Description
Specification
Download
Description
01
Lightweight & Portable

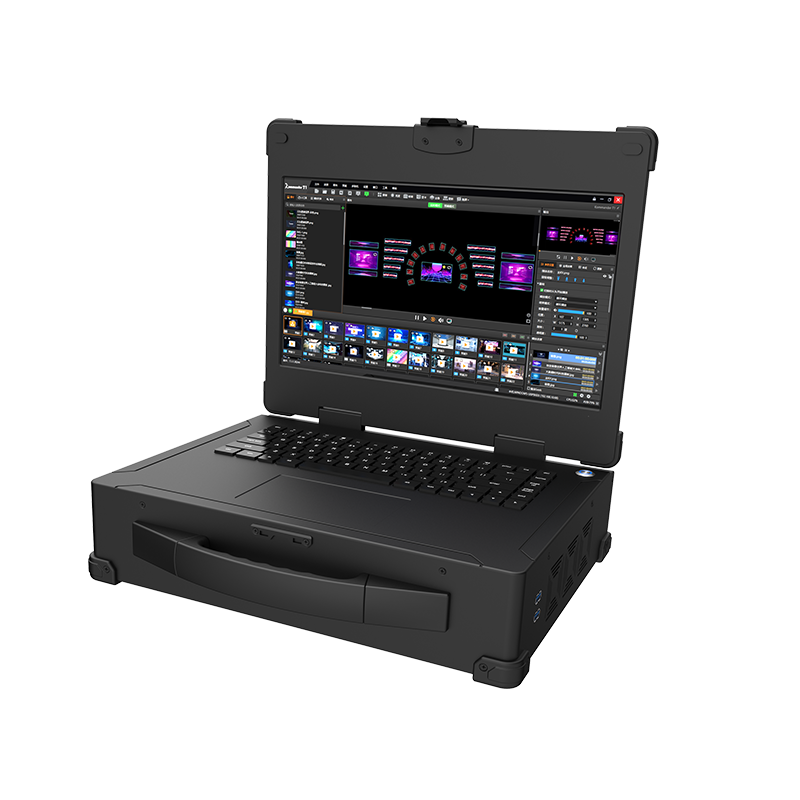

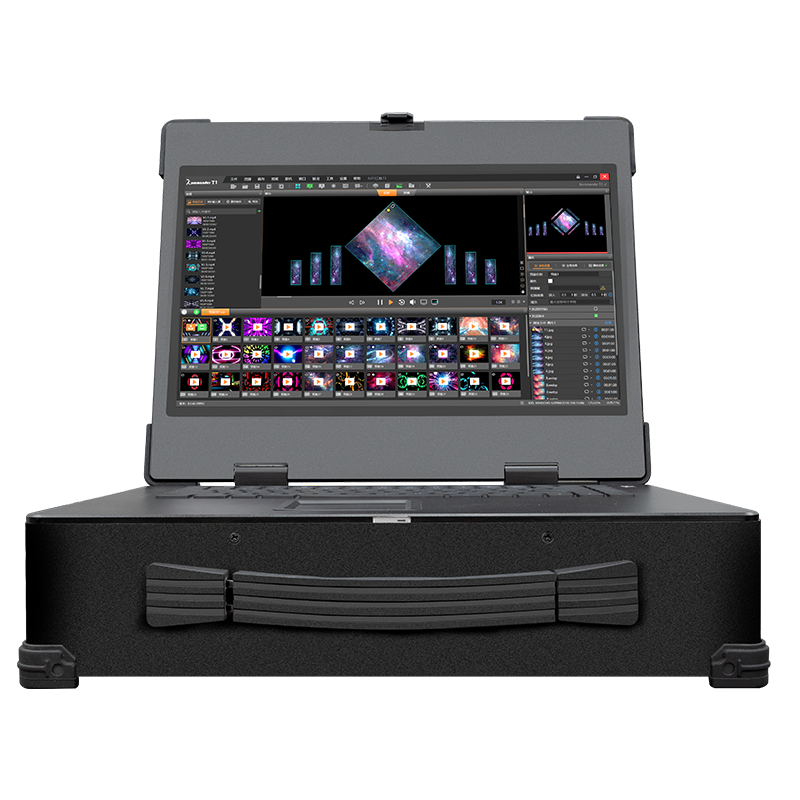

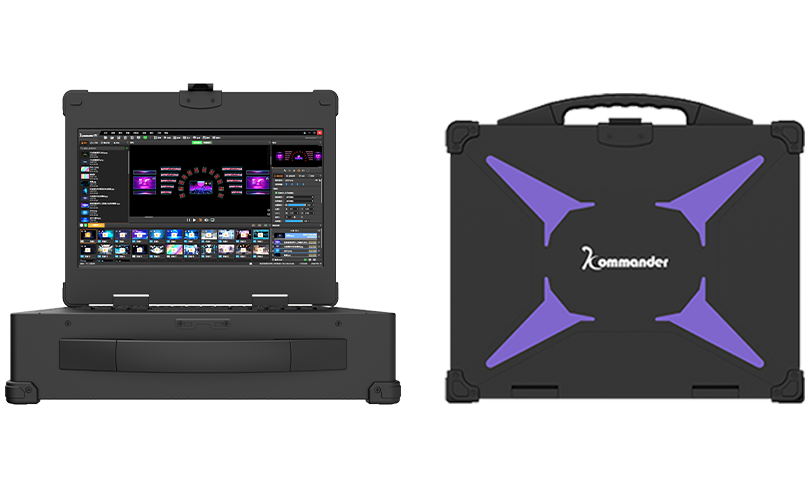

The T1 Portable media server features a built-in 15.6″ 1080P HD display, 88-key mechanical keyboard, and touchpad, allowing operators to manage media playback and event control directly on site.

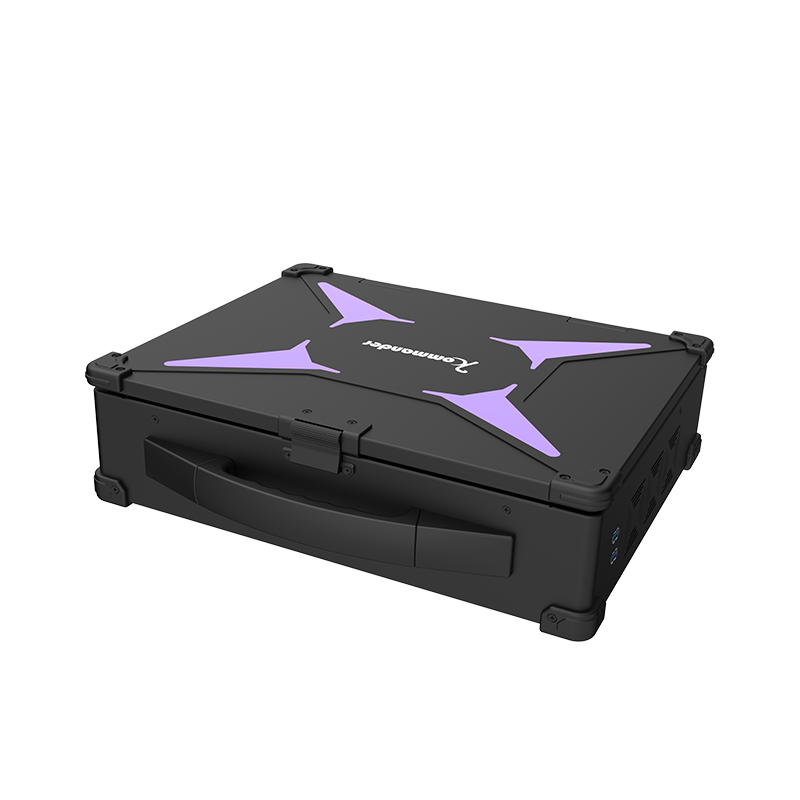

Paired with a dedicated flight case, the entire system weighs only 12.4 kg, making it easier to transport, deploy, and operate in temporary LED screen installations.
02
8-Channel Output
The T1 Portable server provides flexible output options for multi-screen LED display projects, helping operators manage LED walls, split screens, stage backgrounds, and creative display layouts from one portable system.

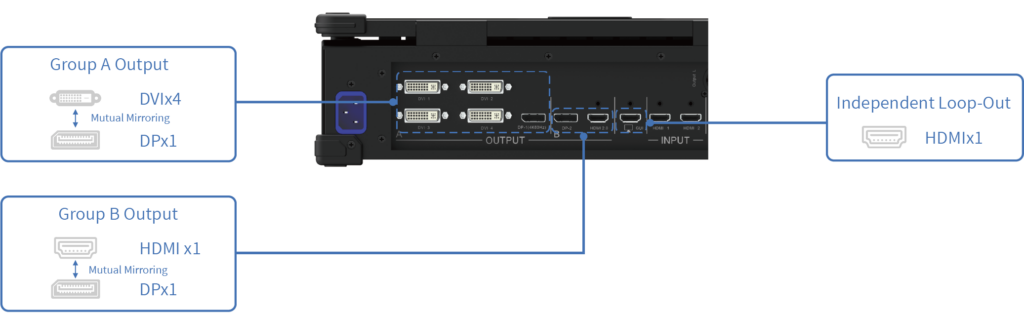

Group A
Group A provides four independent DVI outputs, each supporting up to 1920×1200@60 Hz, along with one DP output. The four DVI outputs can be combined into a single spliced display wall, and the resulting composite image is mirrored to the DP-1 output.
Group B
Group B supports DP-2 and HDMI 2.0 output up to 3840×2400@60Hz, making T1 Portable suitable for multilayer displays, LED video walls, exhibition screens, and real time playback scenarios.
03
8K Hardware Decoding
T1 Portable media server supports 8K hardware decoding to deliver smooth and stable playback for high-resolution LED display content.
Its performance is equivalent to an i7 CPU with a P2200 professional graphics card, supporting tear-free playback of HD and UHD videos.
The system can play at least 4×4K or 8×2K videos at the same time, helping replace traditional multi-PC playback setups and reducing management complexity during live events, broadcast control, and multi-screen display projects.
04
156 System Optimizations

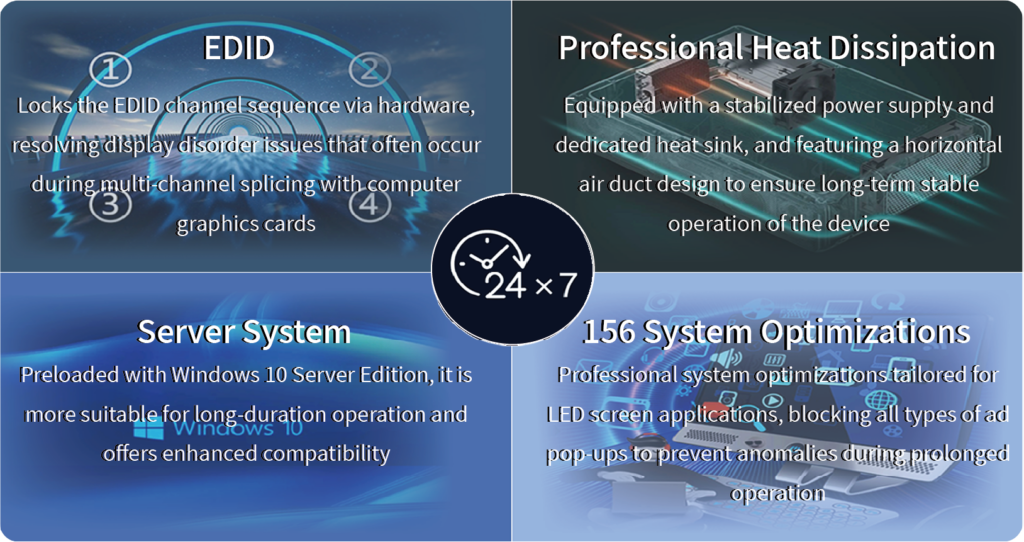

For professional LED display projects, playback stability is as important as performance. T1 Portable media server is equipped with hardware-locked EDID, a professional power supply, and an optimized thermal design.
Running on Windows 10 Server Edition, the system includes 156 professional optimizations to block ads, pop-ups, and unnecessary interruptions during live operation.
With stronger compatibility and stable 7×24-hour performance, T1 Portable is suitable for event control, broadcast control, command center display, and mission-critical LED playback environments.
05
More Features
T1 Portable LED Media Server provides a wide range of software features for professional LED display playback, interactive presentation, and on-site event control.
For visual content processing, it supports effect compositing, HDR conversion, projection blending templates, and immersive processing technology, helping operators create richer multilayer display effects for LED walls, exhibitions, cultural tourism shows, and immersive spaces.
For content playback, T1 Portable supports big data web page playback, multimedia convergence playback and control, PPT/PDF synchronized page turning, online virtual live streaming, and NDI capture. These features make it suitable for real-time playback, network streaming media workflows, conference presentations, command center dashboards, and broadcast control scenarios.
For on-site operation, the system also supports playback logging, a teleprompter, multi-user projection adjustment, scheduled task management, radar interaction, and tablet cloud control, giving event teams more flexible ways to manage playback, interaction, and screen control during live projects.
06
Product Gallery
The T1 Portable Video Playback Server is designed for professional LED display teams that need portable deployment, reliable playback, and flexible multi-screen control. With compact hardware, T1+ control software, real-time playback, multilayer display capability, and event control functions, the T1 Portable server provides an integrated solution for on-site LED media server applications.
It can be used in rental staging, live entertainment, exhibition and conference displays, broadcast control rooms, command centers, cultural tourism performances, and creative LED display projects.
Specification

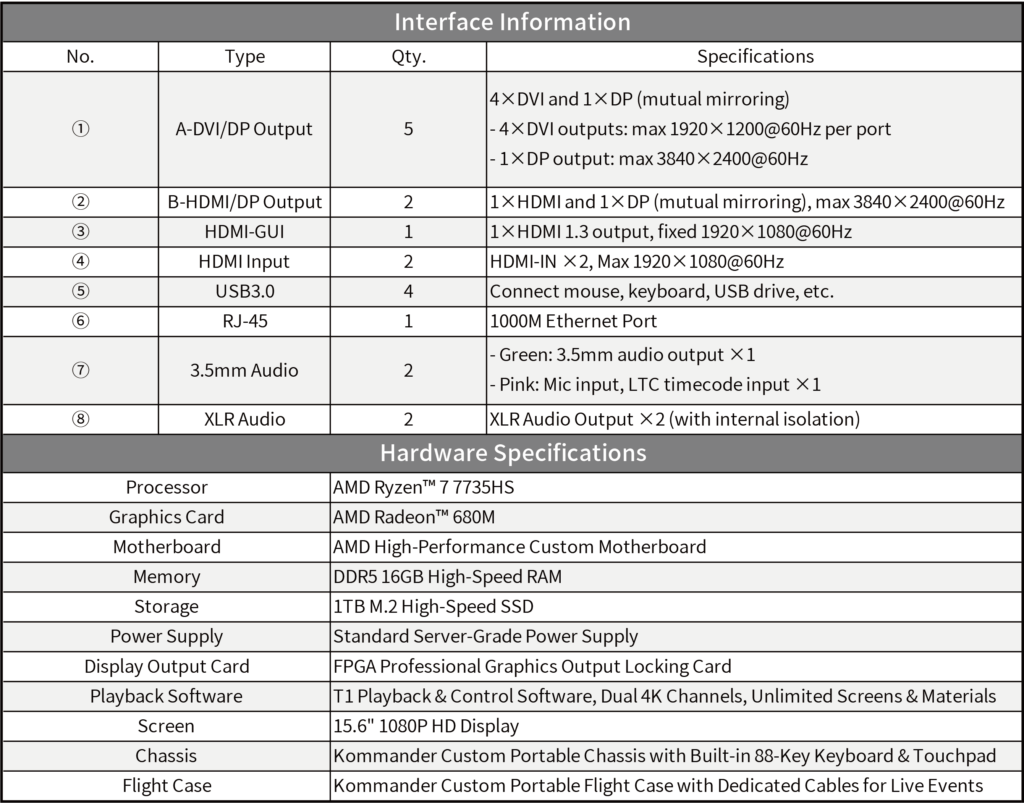

T1 Portable Media Server Specifications

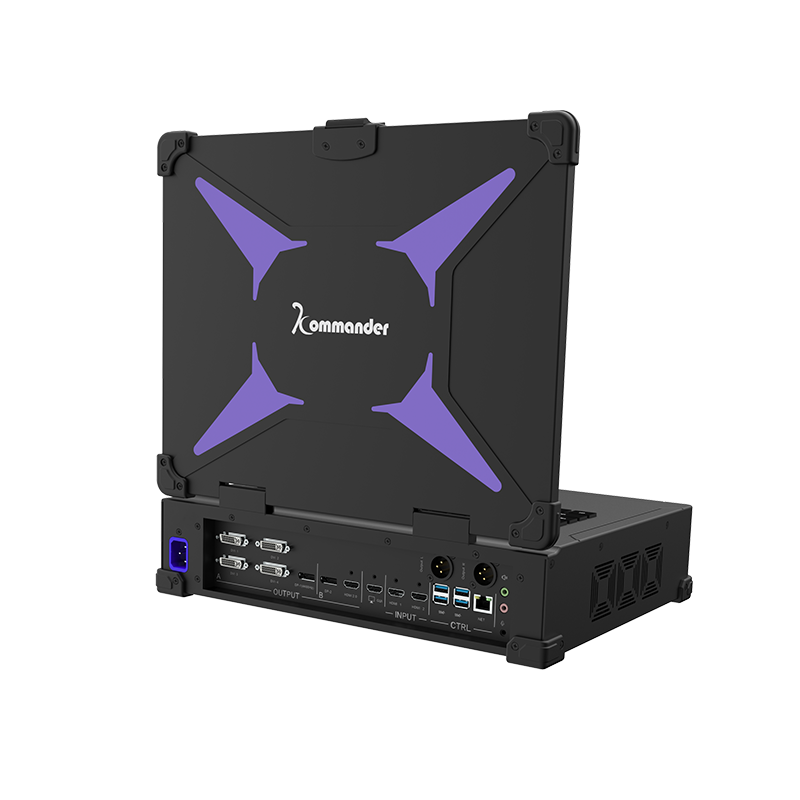

Interface Information
| No. | Type | Qty. | Specifications |
|---|---|---|---|
| 1 | A-DVI/DP Output | 5 |
|
| 2 | B-HDMI/DP Output | 2 | 1 × HDMI output and 1 × DP output with mutual mirroring, supporting up to 3840 × 2400 at 60 Hz. |
| 3 | HDMI-GUI | 1 | 1 × HDMI 1.3 output with a fixed resolution of 1920 × 1080 at 60 Hz. |
| 4 | HDMI Input | 2 | 2 × HDMI inputs, each supporting up to 1920 × 1080 at 60 Hz. |
| 5 | USB 3.0 | 4 | Connect a mouse, keyboard, USB storage drive and other compatible USB devices. |
| 6 | RJ-45 | 1 | 1000 Mbps Ethernet port. |
| 7 | 3.5 mm Audio | 2 |
|
| 8 | XLR Audio | 2 | 2 × XLR audio outputs with internal isolation. |
| Processor | AMD Ryzen™ 7 7735HS |
|---|---|
| Graphics Card | AMD Radeon™ 680M |
| Motherboard | AMD high-performance custom motherboard |
| Memory | 16 GB DDR5 high-speed RAM |
| Storage | 1 TB M.2 high-speed SSD |
| Power Supply | Standard server-grade power supply |
| Display Output Card | FPGA professional graphics output locking card |
| Playback Software | T1 playback and control software with dual 4K channels, unlimited screens and unlimited materials |
| Screen | 15.6-inch 1080P HD display |
| Chassis | Kommander custom portable chassis with a built-in 88-key keyboard and touchpad |
| Flight Case | Kommander custom portable flight case with dedicated cables for live events |
